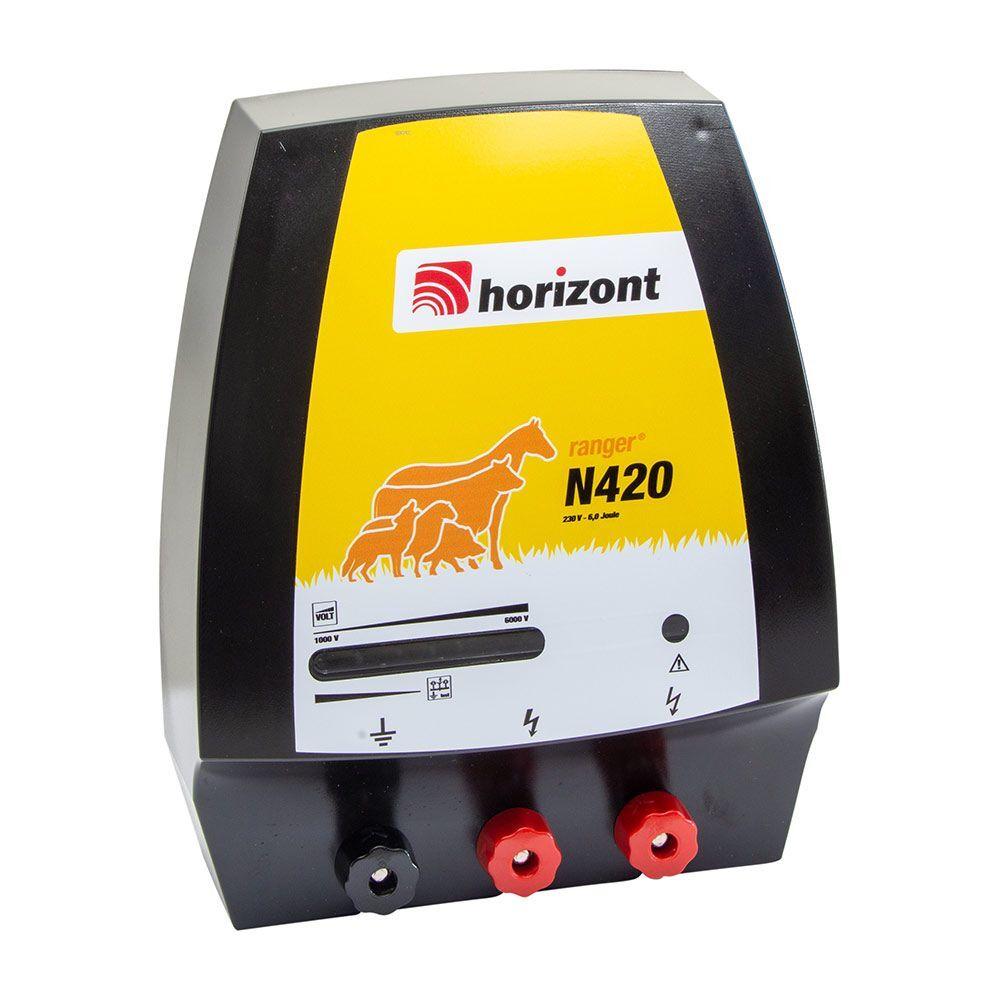

Mains station Ranger N420

The ranger electrifier has 3 connections, in addition to the ground output, there are 2 outputs: a high-power output and a low-power output. The low-power output (limited to approx. 0.5J) is specially designed for use around houses.
Electrifiers applicable to all types of installation
Pulses will enable the energy to be both dissuasive and non-traumatizing throughout the fence.
Pulses work very well in conditions of high resistance (mane or animal hair or in dry ground conditions).
Mains unit, 6 J input, 4.2 J max. output.
For fences up to 40 km without vegetation and 4 km with heavy vegetation.
Technical specifications:
Power supply: 230V
Stored energy: 6J
Output energy: 4.2 J
Maximum fence voltage: 10500V
Voltage under 500 Ohms: 5600V
Maximum fence voltage (2 outputs): 10000V
Consumption: 7W
Maximum fence distance, EEC standard: 100km
Distance without vegetation: 40km
Distance with medium vegetation: 10km
Distance with heavy vegetation: 4km
Number of electrifiable net wires: 16 x 50m
Ground stakes: 4x1.5m (not supplied)
