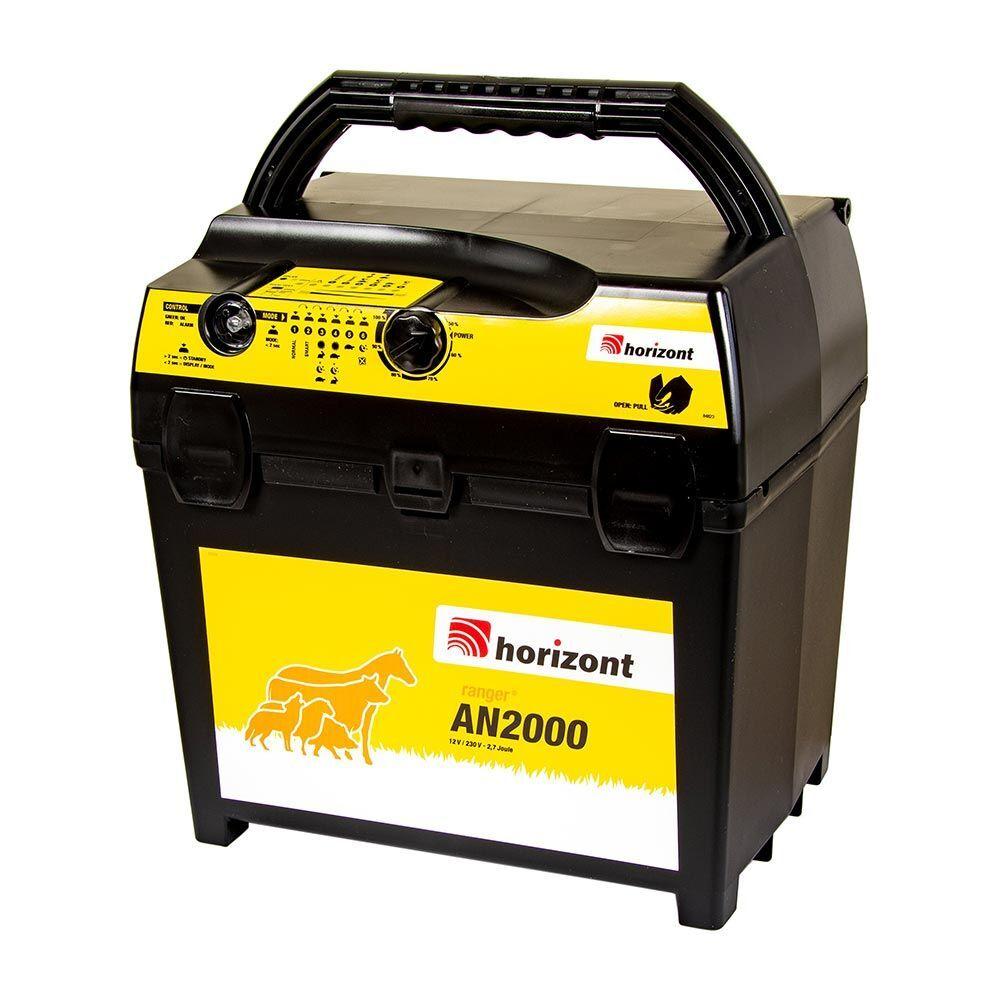

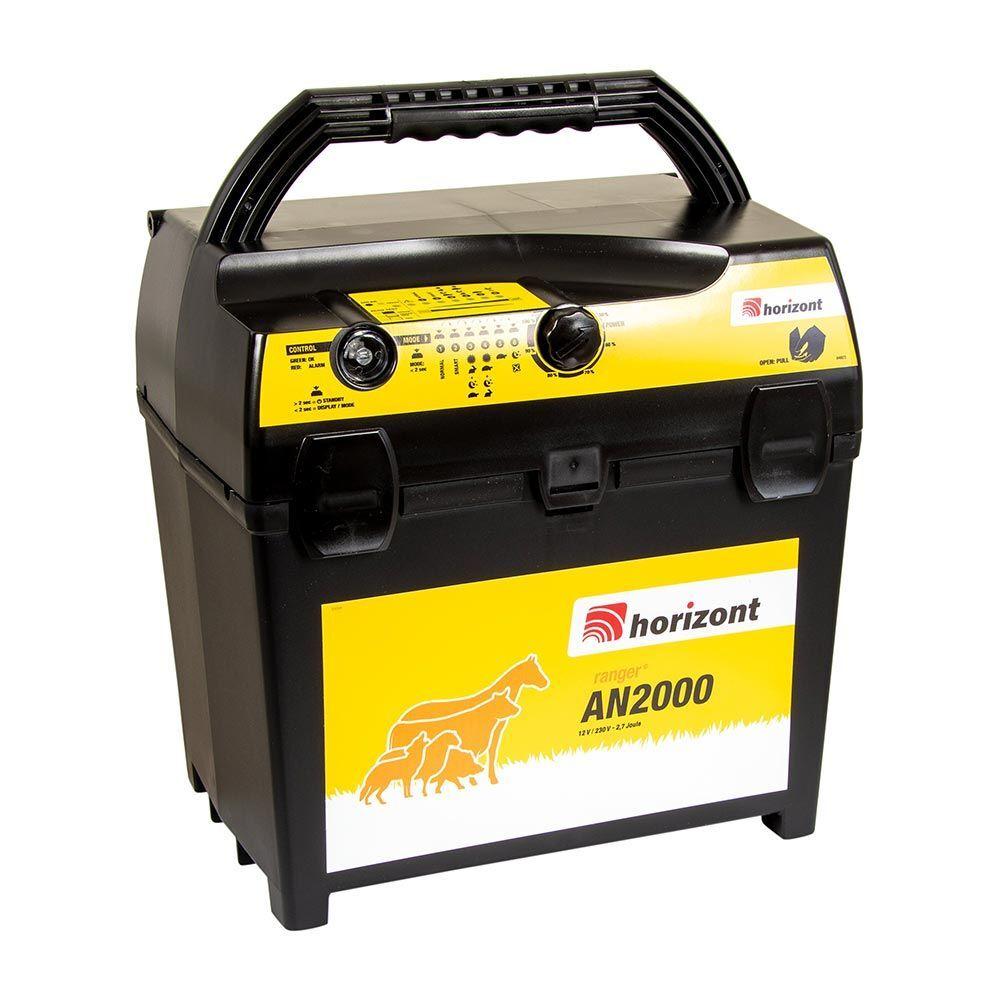

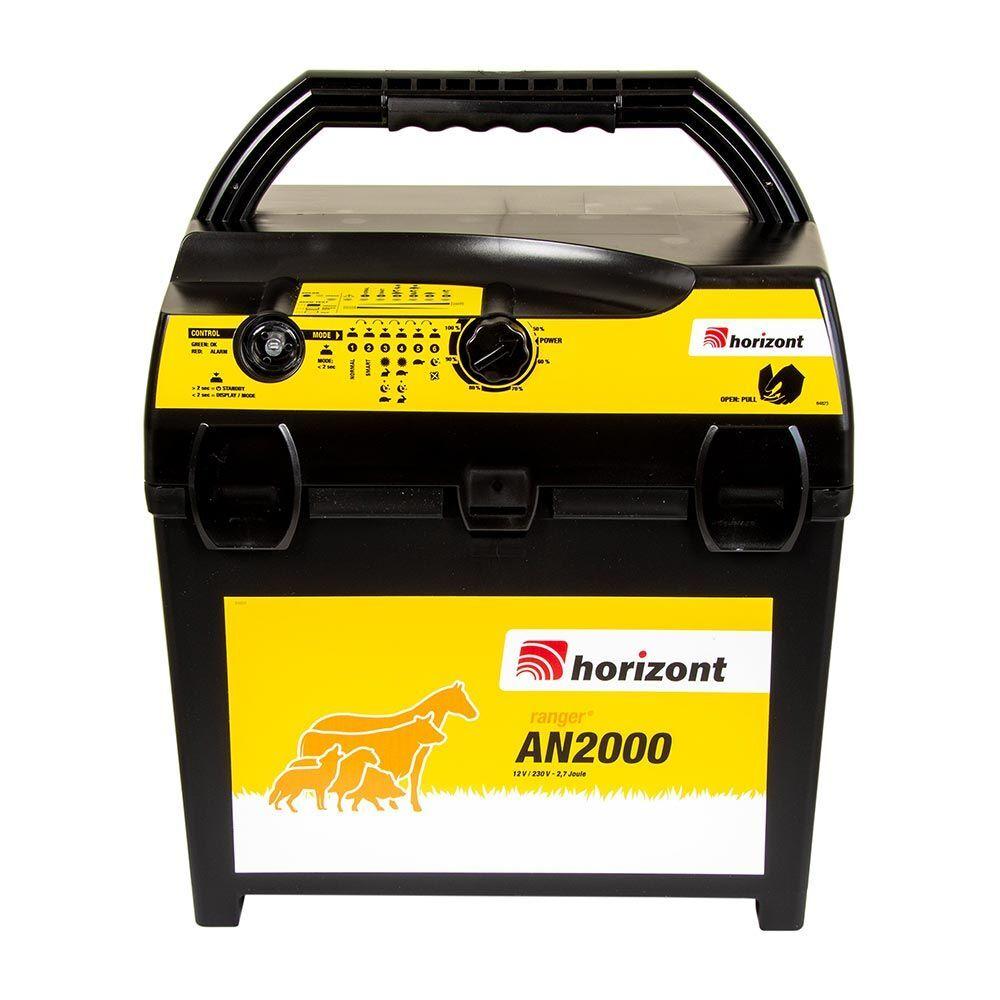

Mixed station Ranger AN2000

The ranger® AN2000 "2-in-1" energizer is designed as a 12 V battery unit. The battery connection cable is installed directly on the unit, for connection to any rechargeable battery. An additional connection for an AC adapter has been added to the back of these units (available as a non-included accessory under part no. 9HOR47PSU0008FEU). This adapter enables the device to operate on 230 V. So, if the device is connected to the adapter and a 12 V battery, this "2-in-1" device can operate even in standby mode. In the event of a power cut, the device continues to operate on battery power, and the solar panel if so equipped.
Advantages :
Comfortable with its GRIP handle.
Fence voltage and "Iso-control" via 6 LEDs.
Battery level indicator and 3-stage display.
Energy-saving system.
Solar charge regulator with charge indicator (Connector with 6.3 mm plug).
Grounding control.

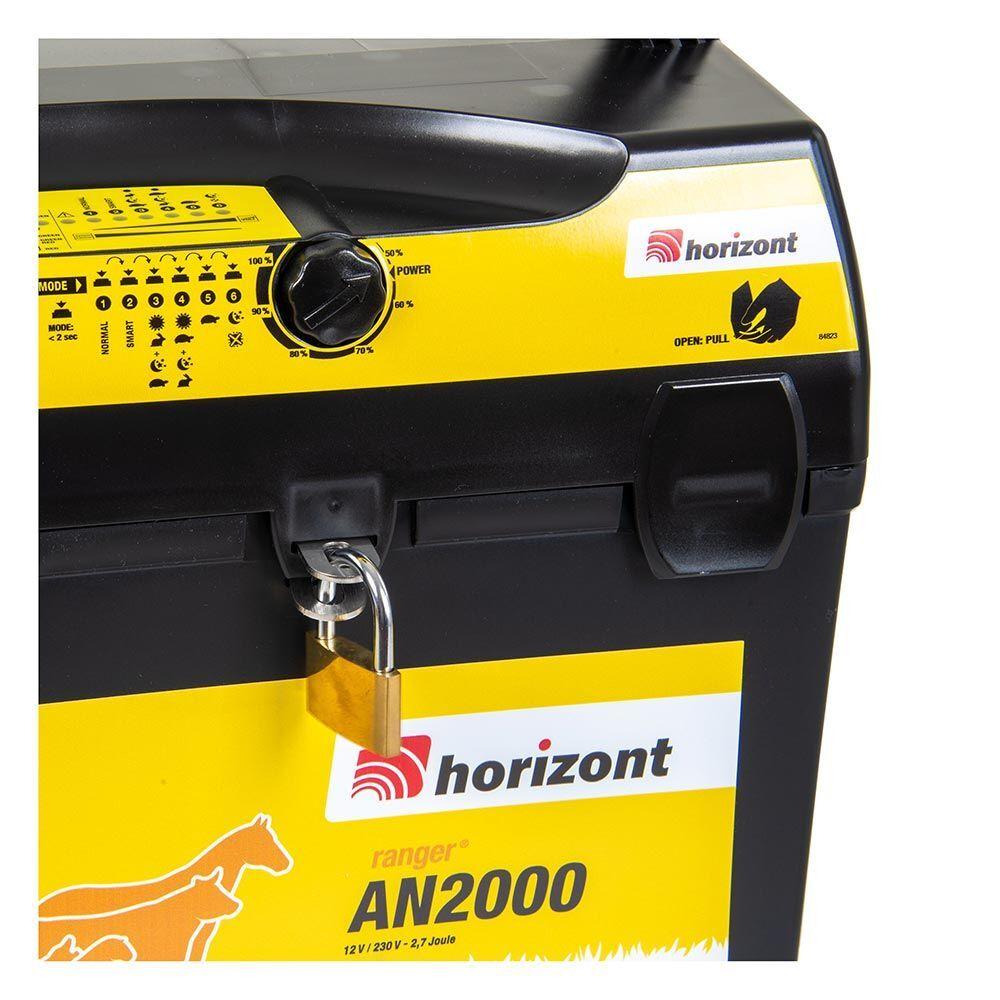

Housing can be closed with padlock (not supplied).
Output power adjustable with potentiometer from 50 - 100%.
Included with the energizer:
Connection clamp for 12 V battery
Supplied without mains transformer. To be ordered separately
Technical specifications :
Power supply: 12V - 9V
Stored energy: 2.6 J / 12V - 0.7 J / 9V
Delivered energy: 2 J/ 12V - 0.5 J / 9V
Maximum fence voltage: 14,000 V / 12V - 5,600 V / 9V
Voltage under 500 Ohms: 4,500 V / 12V - 2,500V / 9V
Consumption: 45-210 mA / 12V - 40-85mA / 9V
Maximum fence distance, EEC standard: 50km / 12V - 14km / 9V
Distance without vegetation: 15 km / 12V - 8km / 9V
Distance with average vegetation: 4.5 km / 12V - 3 km / 9V
Distance with heavy vegetation: 1.7 km/ 12V - 2km/ 9V
Number of electrifiable net wires: 10 x 50m
Ground stakes: 2x1m / 12V - 2x1m / 9V
Solar device: 20W / 12V - 20W / 9V
Recommended solar module: 1*20 W
Recommended 12V battery: 85 Ah
This unit is UV-protected.
6 OPERATING MODES
NORMAL: normal pulse frequency, output power adjustable via potentiometer from 100% to 50%.
INTELLIGENT MODE: normal pulse frequency, APN*.
DAY MODE: normal pulse frequency during the day, slow pulse frequency at night, APN*.
NIGHT MODE: normal pulse frequency at night, slow pulse frequency during the day, APN*.
ECO MODE: slow pulse frequency during the day and night, APN*.
NIGHT ONLY: normal pulse frequency at night, no pulses during the day, APN*.
*APN= Automatic Power Level: By potentiometer or at 50% preset (for devices without potentiometer). APN results in progressive power output, depending on the fence situation
This device benefits from the Horizont energy-saving system:
Less impact on the environment and reduced operating costs (see manual).
Using a solar panel means less frequent recharging of the battery.
