Solar pump 7M3/J

This solar-powered submersible water pump will be ideal for pumping water directly from anyelle source (wells, rivers, ponds...), without priming. Elle allows various applications: livestock watering, crop irrigation, drinking water...This pump runs on the sun, without batteries, without any other energy source.
Features :
Depth: up to 18 m
Water volume per day: up to 23 m3/d
Power: 0.15kW
Voltage: from 16 to 55 DC
Pump diameter: 100 mm
Weight: 7.06 kg
Brushless DC motor (maintenance-free)
High-density resin

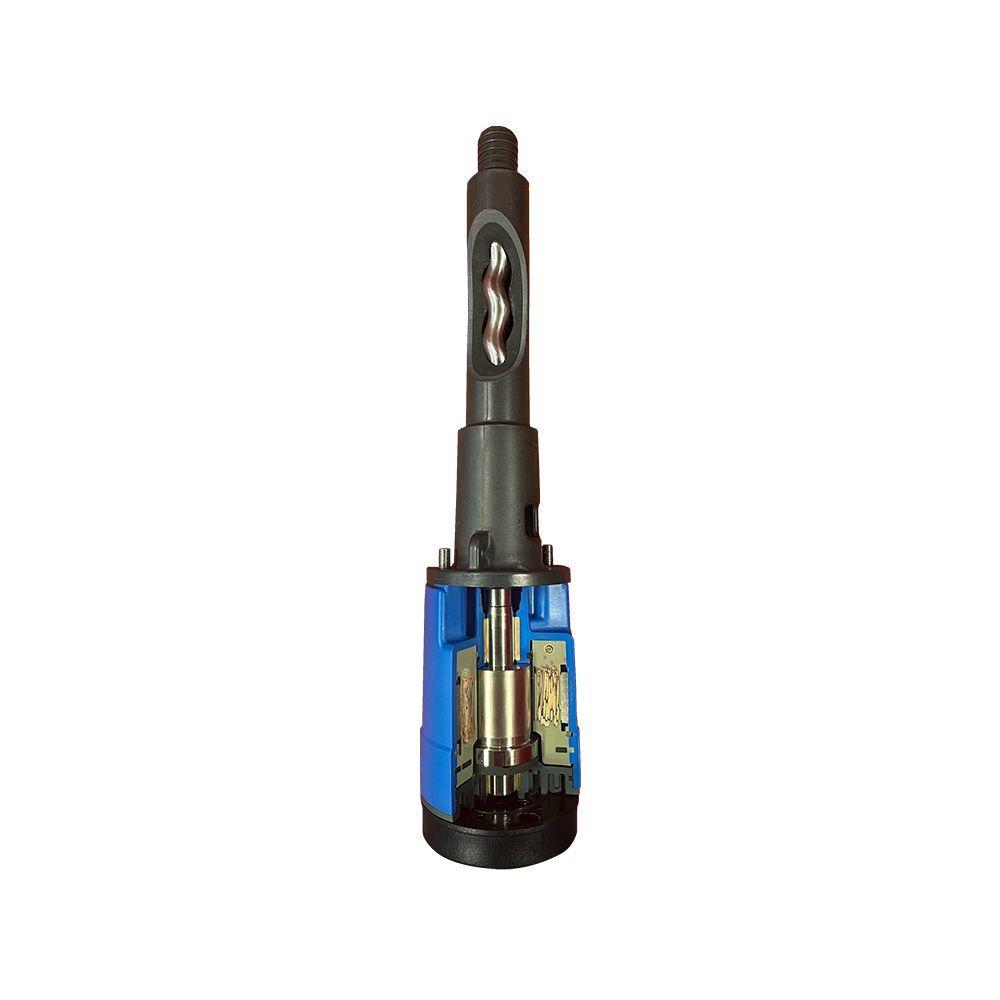

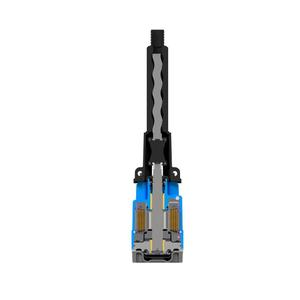

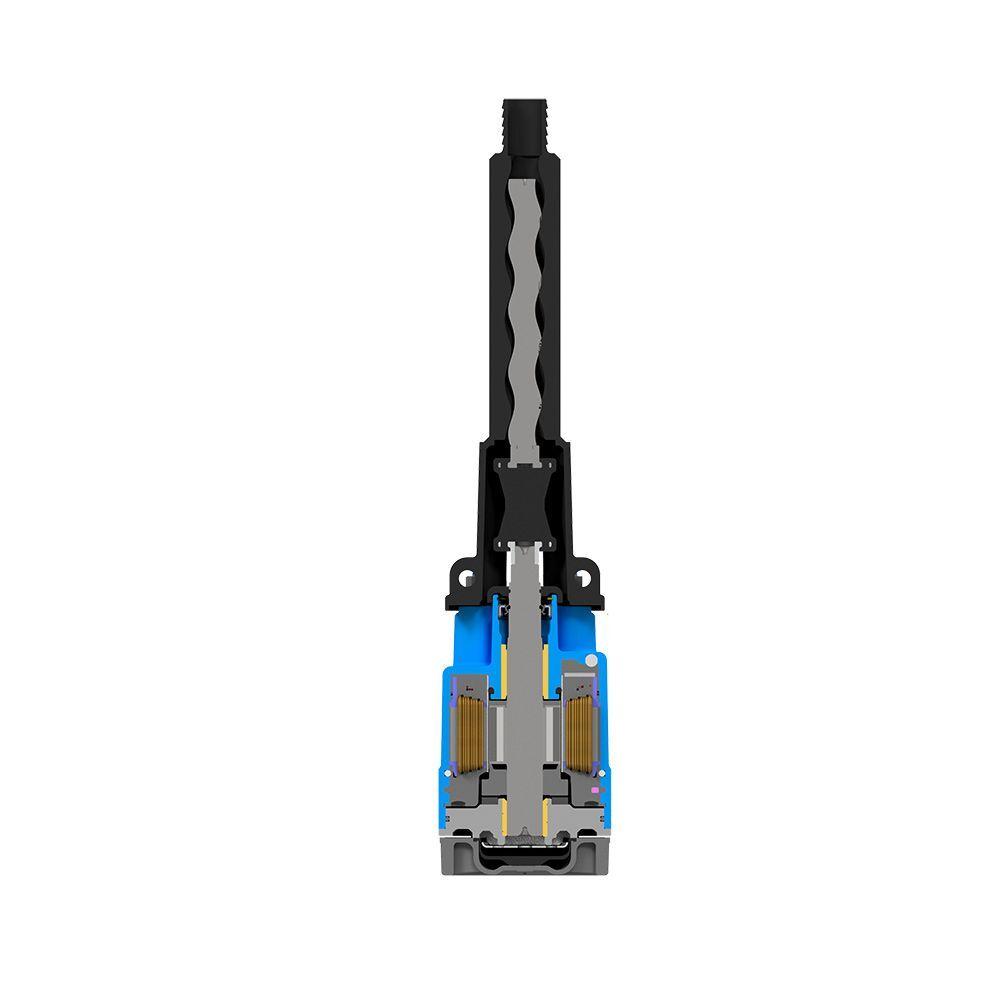

Rotor Helical (progressive cavity)
1' inch outlet (DN25)
IP68 (casing): high resistance to weather and water

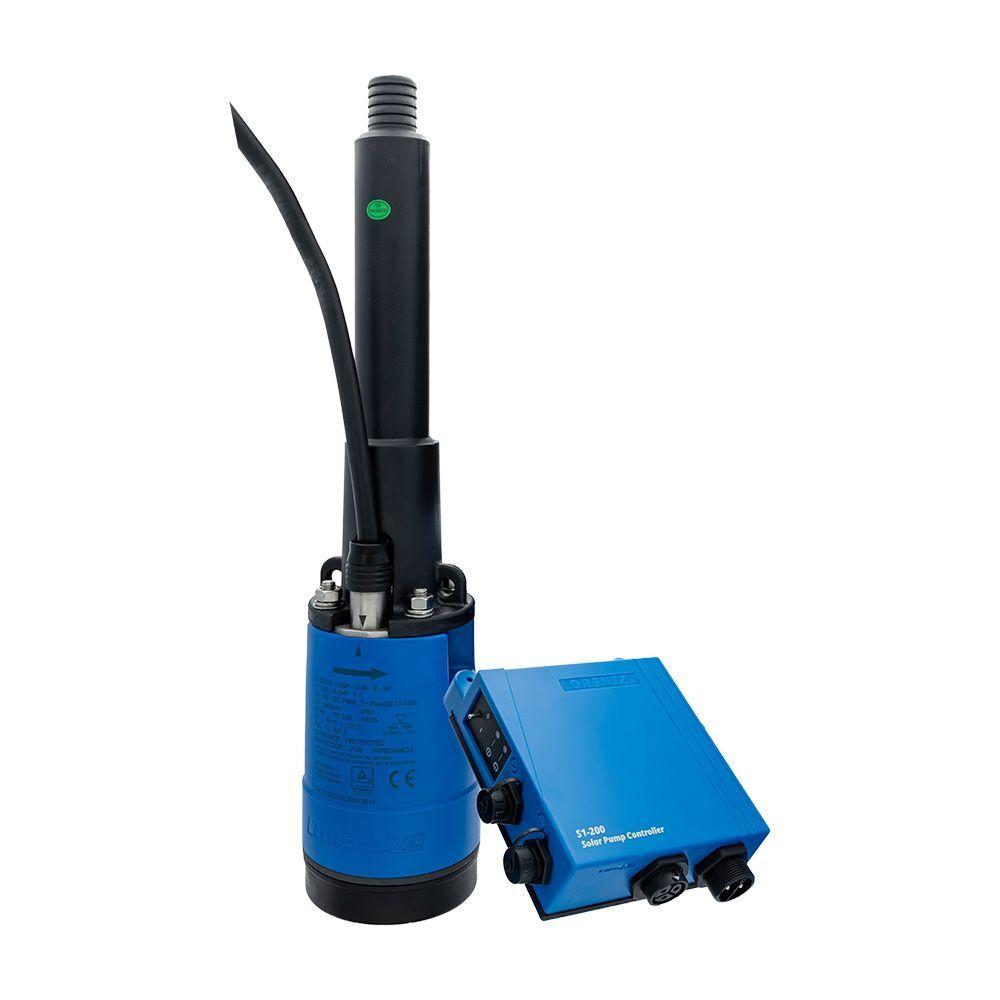

This pump includes :

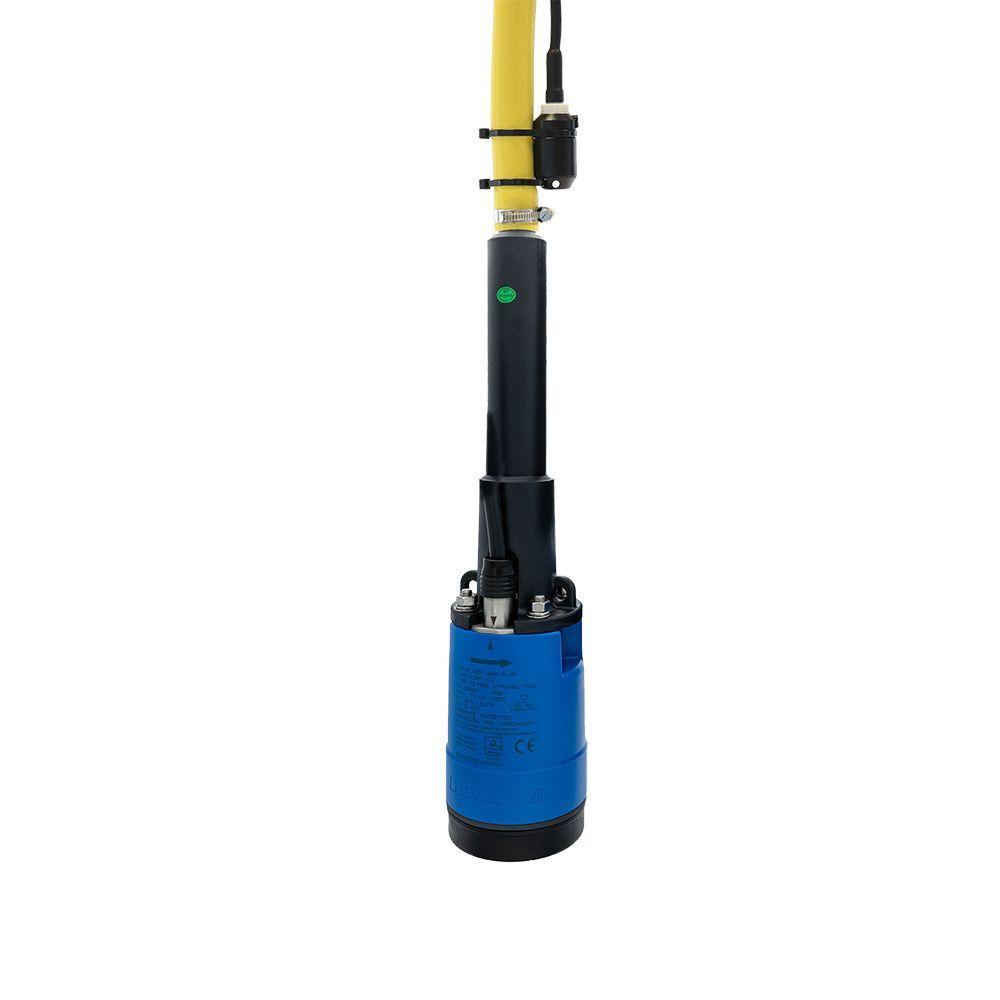

A rotor helical pump with high-efficiency brushless DC motor
A 15 m (50 ft) pre-wired motor cable for connection to the controller

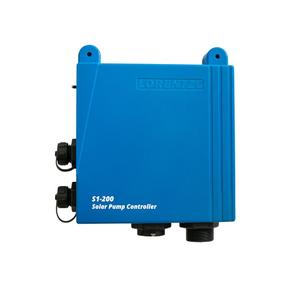

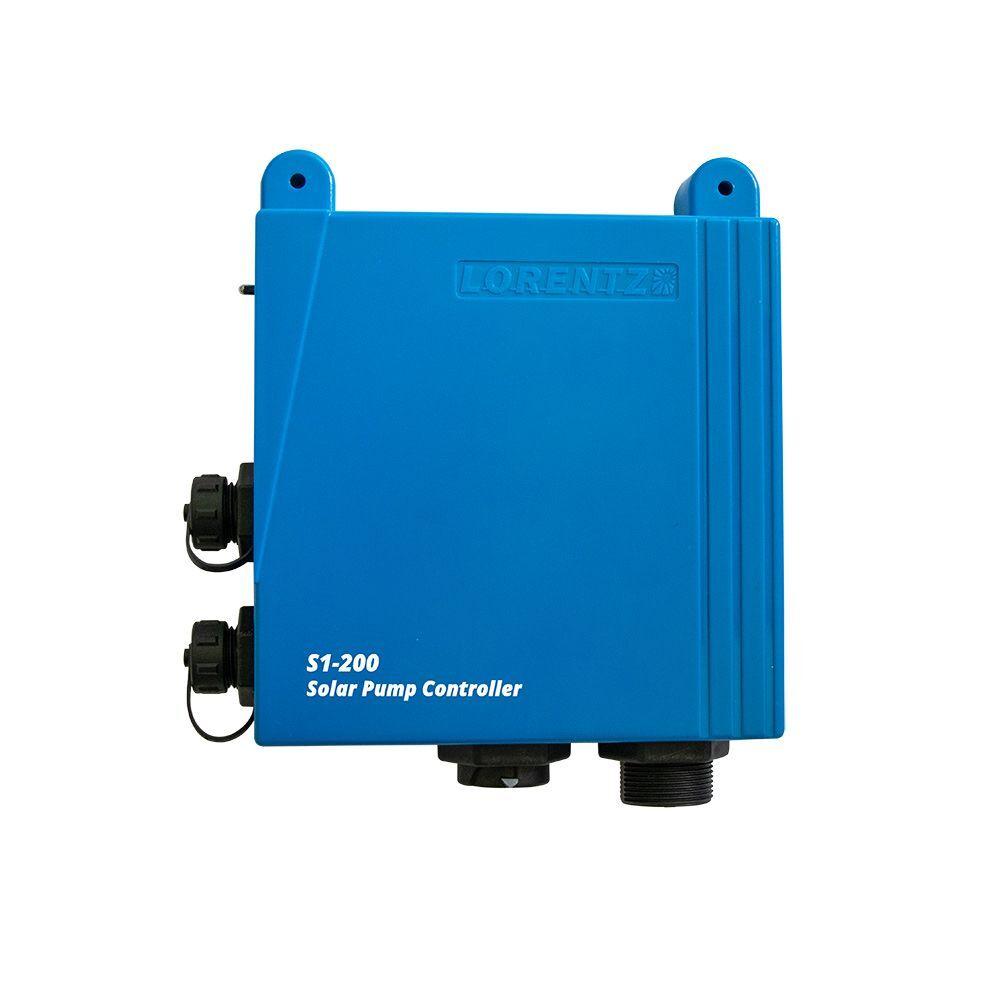

An S1-200 mini controller with accessory inputs for dry-run protection and tank-full switch
A PV module adapter for use with any standard PV module (max. 55 V DC)
Additional accessories required (not included):

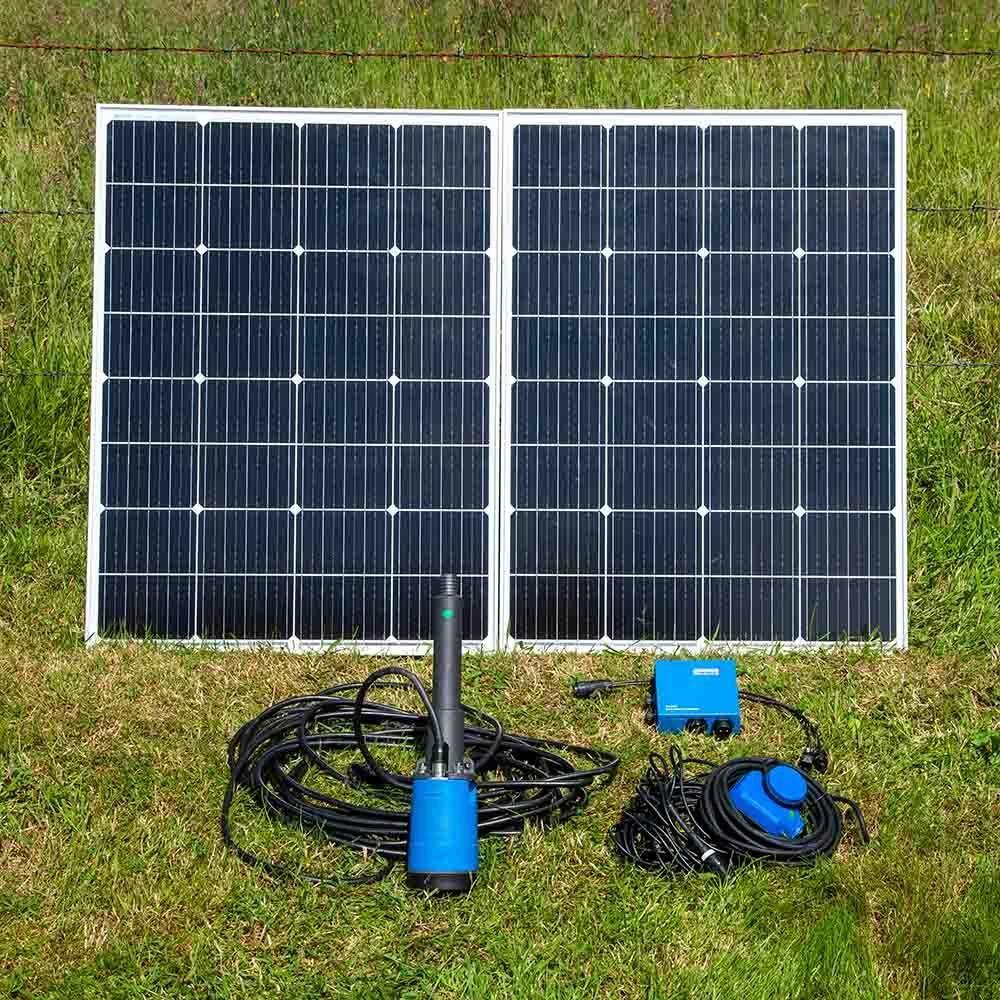

120W solar panel: ref.119150105 *2
Floats: ref. 119150140
Autres additional accessories (not included):
Pump extension: ref.119150141
Sensor extension: ref.119150142
Online configurator:Use the online configurator to help you install your peerage pump.
Small system, big performance:S1-200 pumping systems deliver market-leading performance, providing more water for your off-grid application using only the sun's energy. You can pump over 27,000 liters with 200 W of solar panel. The motor and pump are made from high-quality materials for enhanced durability and reliability. Automatic installation rapide and easy: The S1-200 is a complete system in one box. Installation is very simple, just plug in the sockets and start pumping water. Even the hose connections use standard 1" hoses, eliminating the need for special connections.
Portable and flexible in use:The S1-200 is compact and lightweight, making it easy to carry under the arm. The system can be installed permanently or used in applications where it is moved tous daily. The submersible pump is self-priming and can be used in open water or wells. Simply set up the pump and start pumping.
Application control and monitoring:With the S-Connect application from LORENTZ, you can control and monitor your pumping system. S-Connect offers advanced parameters such as speed control, daily targets and timers to automate pumping programs. The app also monitors performance over time and helps you get product support. Data storage and Bluetooth™ connectivity.
Please note:The pump runs solely on solar power - without batteries and is therefore subject to weather conditions.
