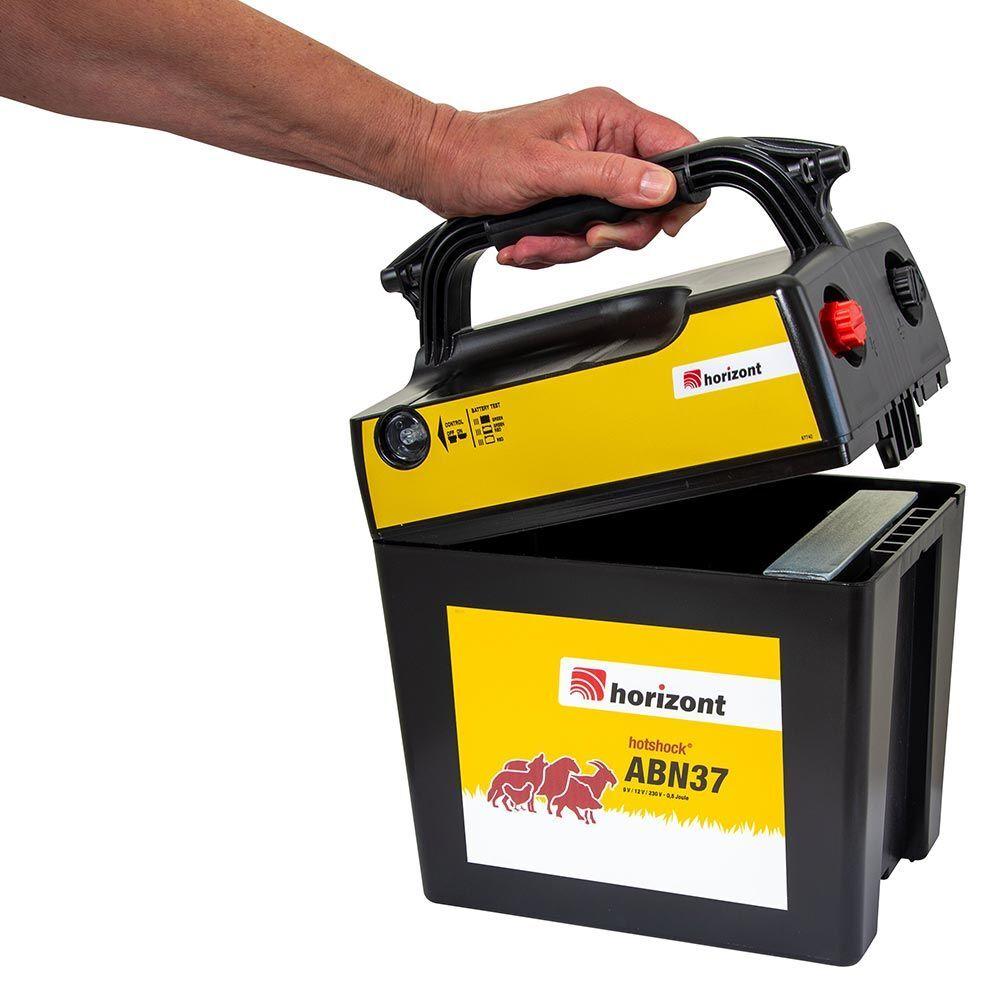

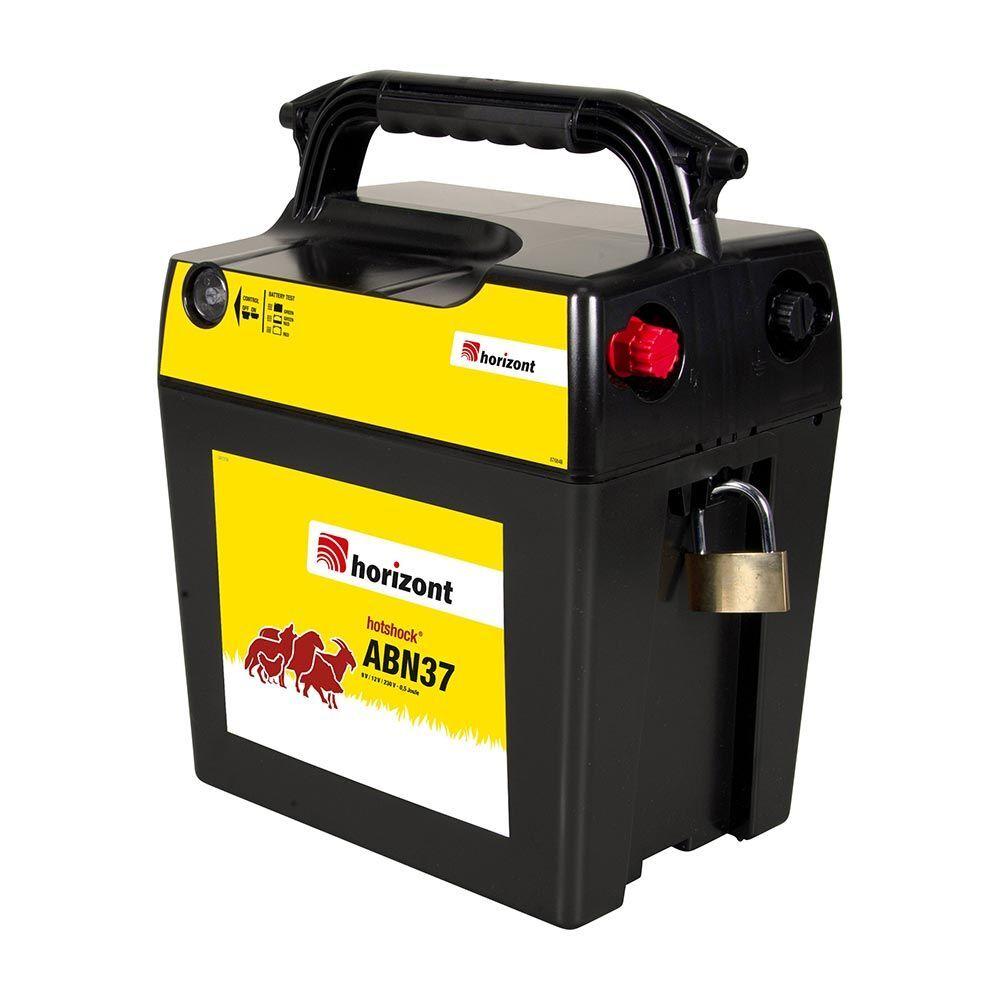

Mixed station Hotshock ABN37

An ideal range for crop protection and protection against damage from game and wildlife. Fence systems that have proved their worth under difficult conditions, such as using vegetated nets or against wild boar and wolves.
Mixed device, 0.5 J input, 0.37 J output.
For fences up to 6 km without vegetation and 1.1 km with heavy vegetation.

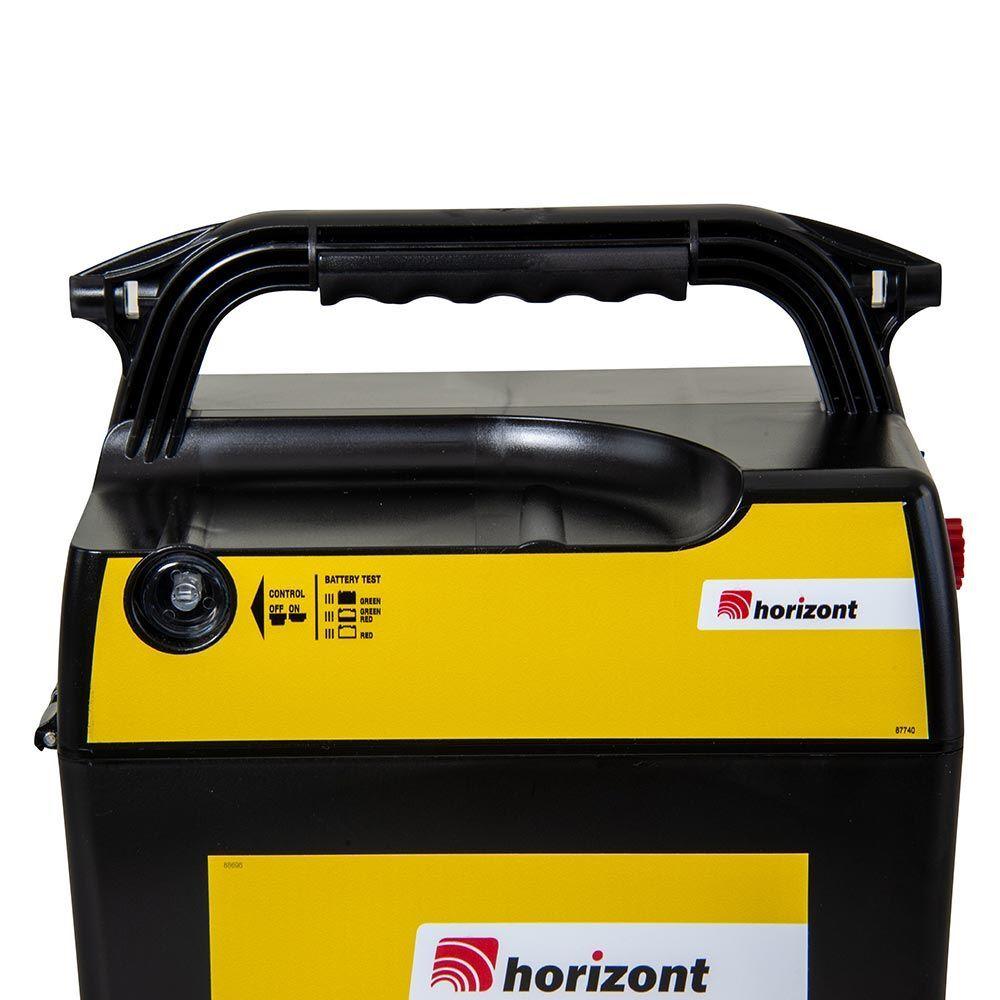

Battery indicator.
Can be used with a 9 V dry cell, a 12 V battery and a 230 V mains supply.
The energizer can be used with a 12 V battery and a 230 V mains supply at the same time. It operates mainly on mains power and charges the 12 V battery. In the event of a mains failure, the battery can take over without interrupting fence operation.
Works with solar module Ref 125H14511
With integrated solar charge controller - easy recharging.
Included with the energizer:
Fence connection cable
Ground connection cable with reinforced plastic sheath
Supplied without mains transformer. To be ordered separately
Technical specifications:
Stored energy: 0.5J / 9V / 12 V / 230
Delivered energy: 0.37 J/ 9V/ 12 V / 230
Maximum fence voltage: 12 500V / 9V/ 12 V / 230
Voltage under 500 Ohms: 3800V / 9V/ 12 V / 230
Consumption: 12V - 35mA 9V - 47mA
Maximum fence distance, EEC standard : 10km / 9V/ 12 V / 230
Distance without vegetation: 6km / 9V/ 12 V / 230
Distance with medium vegetation: 4km / 9V/ 12 V / 230
Distance with heavy vegetation: 1.1km / 9V/ 12 V / 230
Number of nets: 3x50m
Recommended number of ground stakes: 1 x 1m
Recommended solar panel: 10W
