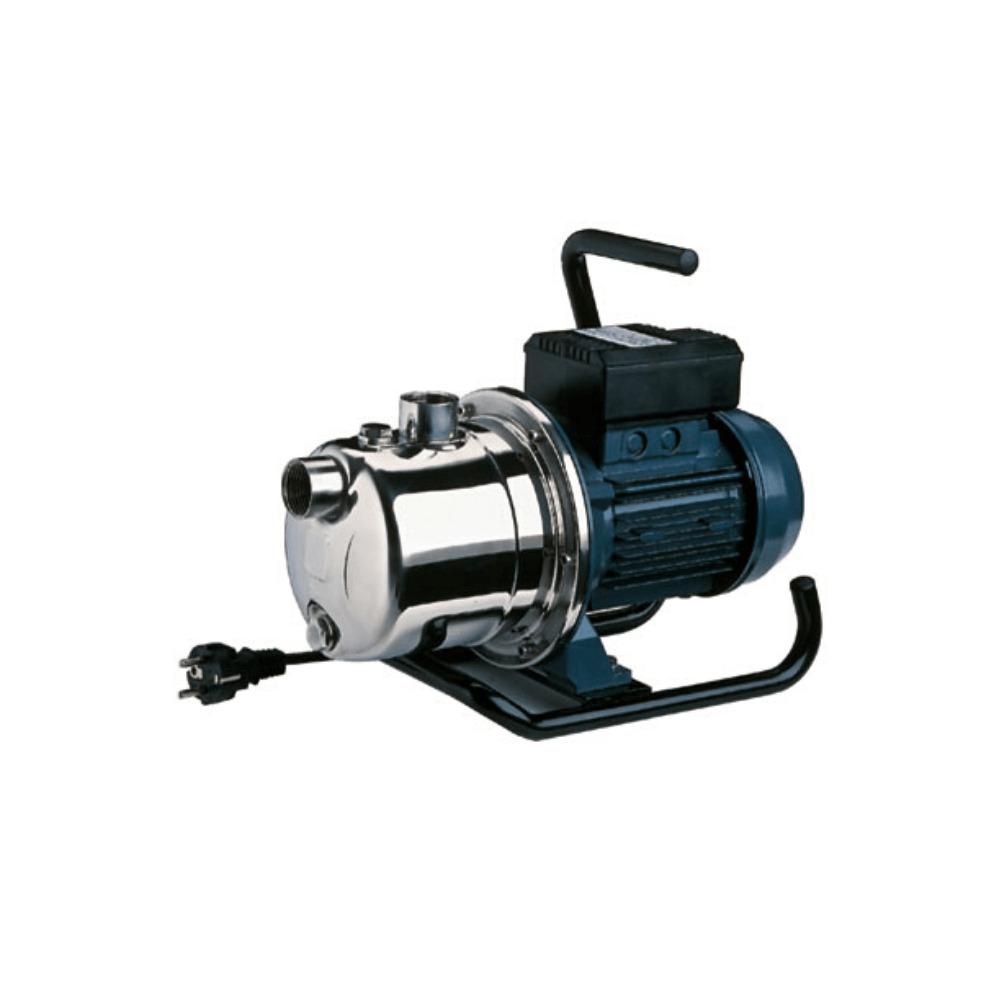

Single-phase self-priming stainless steel pump JESX5 Garden

Self-priming AISI 304 stainless steel pump designed for clear water supply, clear water removal for private homes, small-scale garden irrigation, emptying tanks and swimming pools, and general clear water lifting.
The JESX pump is simple to use and easy to install thanks to its low weight.The pump's flexibility and reduced dimensions also make it easy to install.Properly installed and secured, the pump can suck up to a height of 8m.The GARDEN version provides a carrying handle for ease of use and features a switch and socket: ideal for domestic use.
Technical data :
Max. operating pressure: 6 bar
Max. liquid temperature: 45°C
Max. suction depth: 8 m
Poles: 2
Insulation class: F
Protection class: IP54
Voltages: single-phase approx. 230 V + or - 10%
Power: 0.37 kW (0.5 HP)
Inlet diameter: 1 inch
Outlet diameter: 1 inch
Weight: 5.1 kilos
JESX - JEX series electric pumps are made of AISI 304 stainless steel. They are self-priming pumps equipped with a Venturi group (ejector and diffuser), easy to use and lightweight thanks to their compact dimensions. The pump body, support and seal-holding disc are made of AISI 304 steel. They are fitted with an AISI 303 shaft (for the part in contact with the liquid). Impellers differ according to model: for JESX electric pumps, the impeller is made of glass-fiber-reinforced PPE + PS. The mechanical seal is made of Ceramic/Carbon/NBR. The motors are self-ventilated 2-pole asynchronous. Highly energy-efficient IE3 from 0.75 kW.
