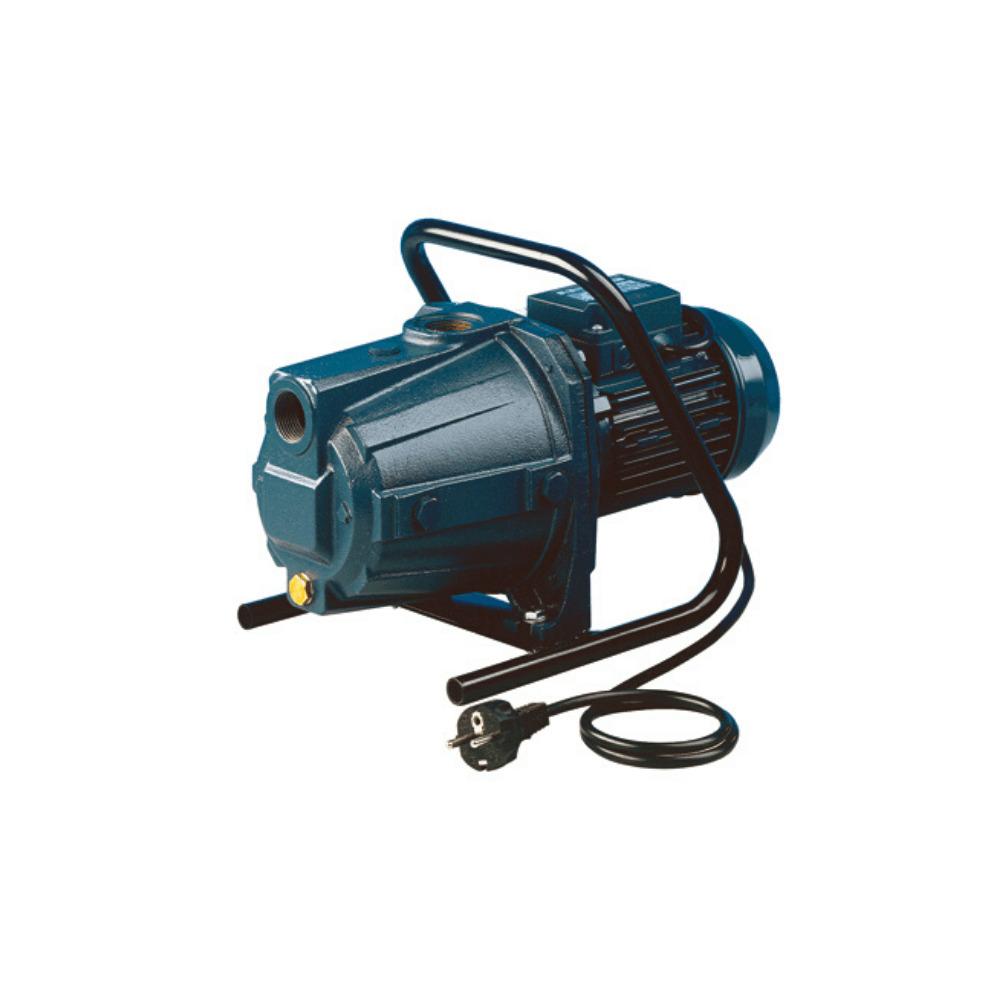

Single-phase cast-iron self-priming pump Aga Garden

The cast-iron, self-priming electric pump is designed to boost the pressure of clear water in private homes, small-scale garden irrigation, vehicle washing and general clear-water lifting. This surface-mounted pump is ideal for domestic use, making it easy to collect rainwater. This surface-mounted pump is ideal for domestic use, making it easy to collect rainwater.
The AGA pump is simple to use and easy to install, thanks to its low weight.The pump's flexibility and reduced dimensions also make it easy to install.Properly installed and secured, the pump can draw in water up to a height of 8m.The GARDEN version includes a carrying handle for ease of use, and is equipped with a switch and socket.
Technical data :
Max. operating pressure: 6 bar
Max. liquid temperature: 45°C
Max. suction depth: 8 m
Poles: 2
Insulation class: F
Protection class: IP44
Voltages : single-phase approx. 230 V + or - 10%
Power: 0.55 kW (0.75 HP)
Inlet diameter: 1 inch
Outlet diameter: 1 inch
Flow rate: up to 3m3 per hour
Weight: 12.5 kilos
AGA - AGC electric pumps are self-priming cast-iron pumps equipped with a glass-fiber-reinforced PPE + PS Venturi assembly (ejector and diffuser). Practical, easy to use and transport thanks to their low weight. The pump body is made of cast iron for tous models. Their special features include a shaft in AISI 303 steel (for the part in contact with the liquid). Impellers are available in glass-fibre-reinforced PPE+PS. The mechanical seal is made of Ceramic/Carbon/NBR. The motors, self-ventilated 2-pole asynchronous, are highly energy-efficient IE3 from 0.75 kW.
